Aerbes AB‑JK22 Wi‑Fi Mini Spy Camera – 1080P HD, Motion‑Detection, Battery Powered

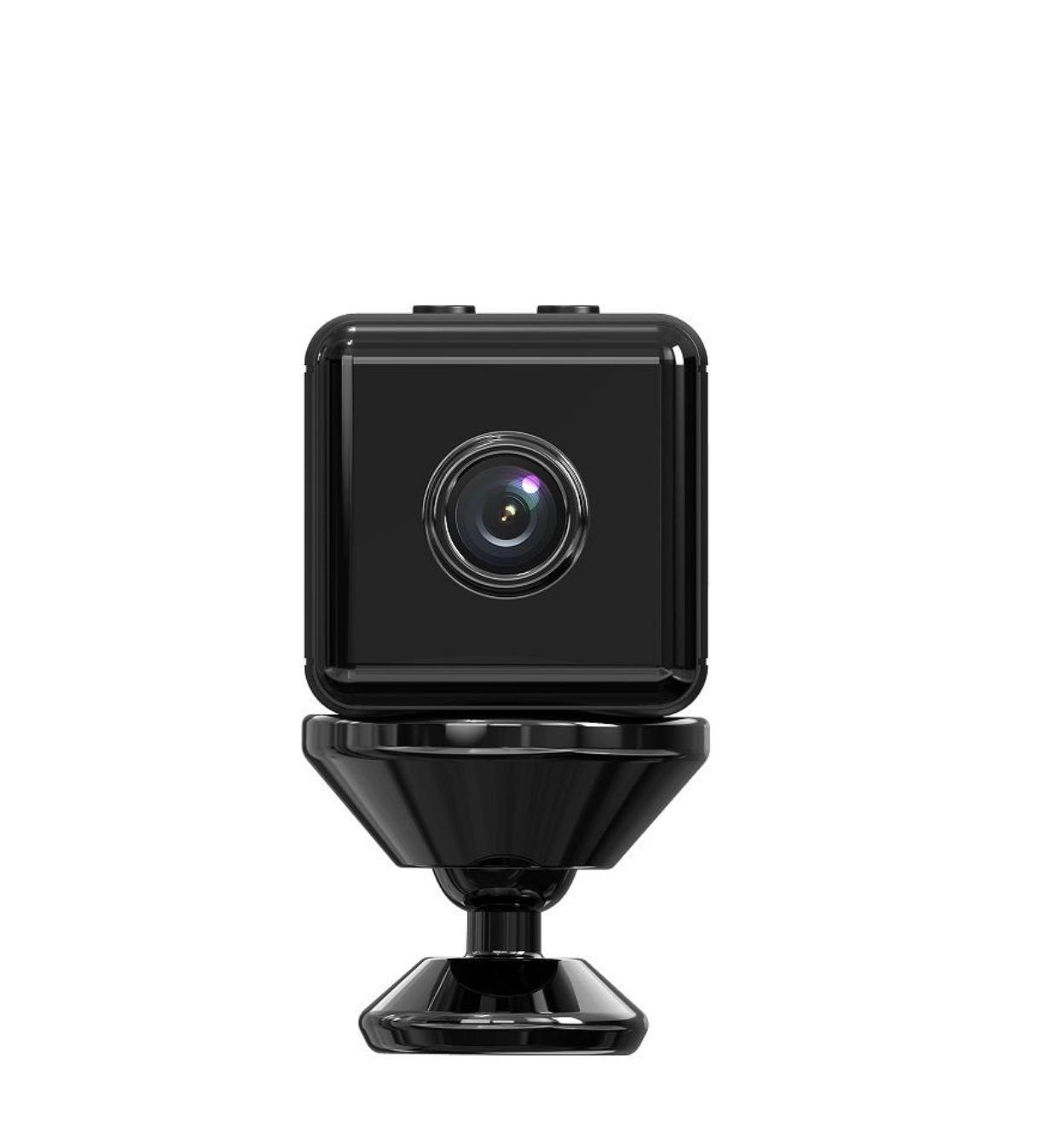

The Aerbes AB‑JK22 is an ultra‑compact, versatile Wi‑Fi spy camera ideal for discreet home or workspace surveillance. Featuring a 1/4″ H62 CMOS sensor and Ingenic T21 processor, it delivers crisp real-time 1080P video at 30 fps, streaming directly to your smartphone via AP hotspot mode. With customizable image settings—brightness, contrast, saturation—adapt the feed to your environment. Its built-in 1000 mAh rechargeable battery supports up to three hours of recording, or you can maintain continuous operation via USB power.

The device excels in security: intelligent PIR motion detection triggers alerts and recording upon human presence, while 6 infrared LEDs enable night vision up to five meters. Multi-streaming supports 1080P + VGA + 360P simultaneously, facilitating both high-definition recording and efficient bandwidth use. The camera’s 150° wide-angle lens ensures broad coverage, and its tiny size with magnetic swivel mount makes it easy to position in varied settings. Encrypted Wi‑Fi protocols (WEP/WPA/WPA2) and factory reset options ensure privacy and convenience.



General/Technical Specifications

• Brand: Aerbes

• Model: AB-JK22

• Color: Black cube

• Battery: 1000 mAh rechargeable

• Power Input: DC 5 V, ~230 mA

• Wi‑Fi Standard: IEEE 802.11 b/g/n @2.4 GHz

• Security: WEP, WPA‑PSK, WPA2‑PSK

• User Access: Up to 10 simultaneous users

• Processor: Ingenic T21

• Sensor: H62 1/4″ 1080P Progressive‑Scan CMOS

• Video Resolution: 1920×1080 @30fps; VGA@30fps; 360P@4fps (multi-stream)

• Compression: H.264 (Main/Baseline), MJPEG, JPEG

• Bitrate: 128–4096 kbps (CBR/VBR)

• Lens Angle: 150° diagonal

• Illumination: 0.3–0.5 Lux (color), 0 Lux (B&W)

• Night Vision: 6× 940 nm infrared LEDs, 3–5 m range

• Audio: ADPCM, 8 kHz/16‑bit, ~32 kbps

• Network Protocols: TCP/IP, HTTP, TCP, UDP, DHCP, DNS, NTP, RTSP, P2P
