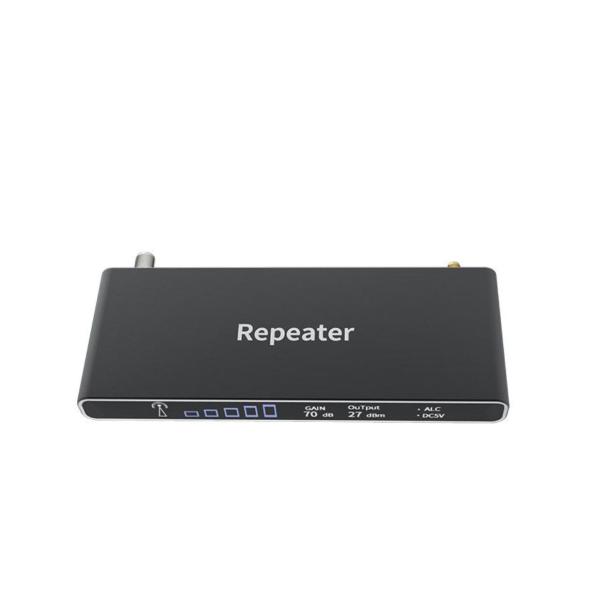

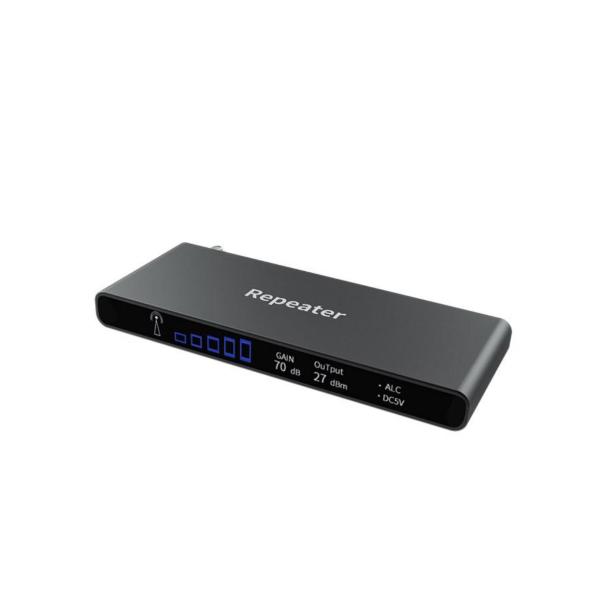

WBJ1800-5G 4G LTE / 5G Dual-Band Mobile Signal Booster – High-Gain Repeater for Enhanced Voice & Data Connectivity

The WBJ1800-5G Dual-Band Mobile Signal Booster is engineered to amplify weak 4G LTE and 5G signals, ensuring robust and reliable mobile connectivity. Operating on the 1800 MHz (Band 3) and 2600 MHz (Band 7) frequency bands, this booster is ideal for enhancing voice and data signals in areas with poor reception. Whether for home, office, or commercial use, the WBJ1800-5G ensures seamless communication and faster data speeds.





General/Technical Specifications

• Frequency Range:
  • 1800 MHz (Uplink: 1710–1785 MHz; Downlink: 1805–1880 MHz)
  • 2600 MHz (Uplink: 2496–2690 MHz)
• Bandwidth:
  • 1800 MHz: 75 MHz
  • 2600 MHz: 195 MHz
• Gain:
  • Uplink: 60±3dB
  • Downlink: 65±3dB
• Output Power:
  • Uplink/Downlink: 17±2dBm
• Noise Figure: ≤9dB
• VSWR: ≤2.0

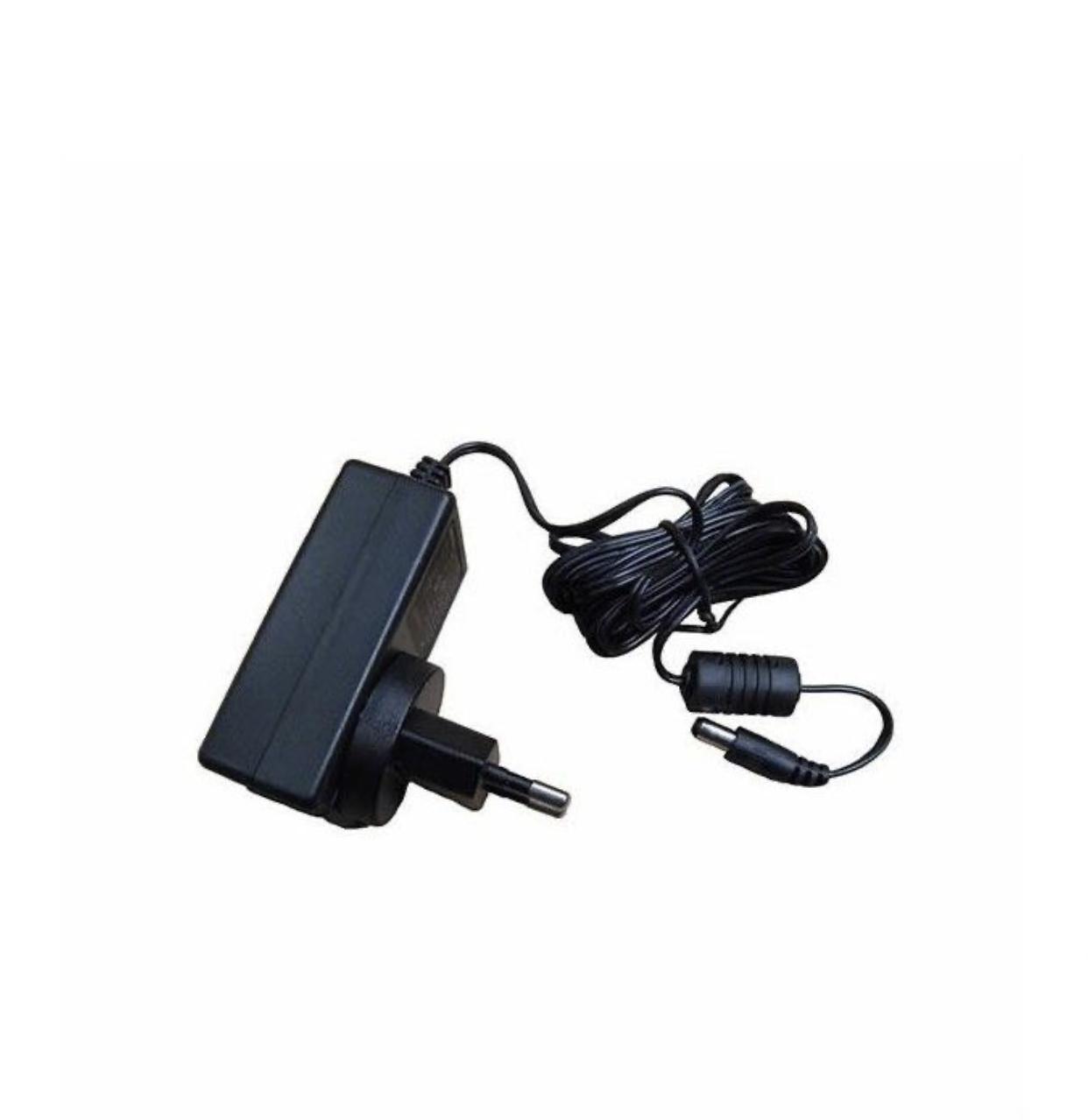

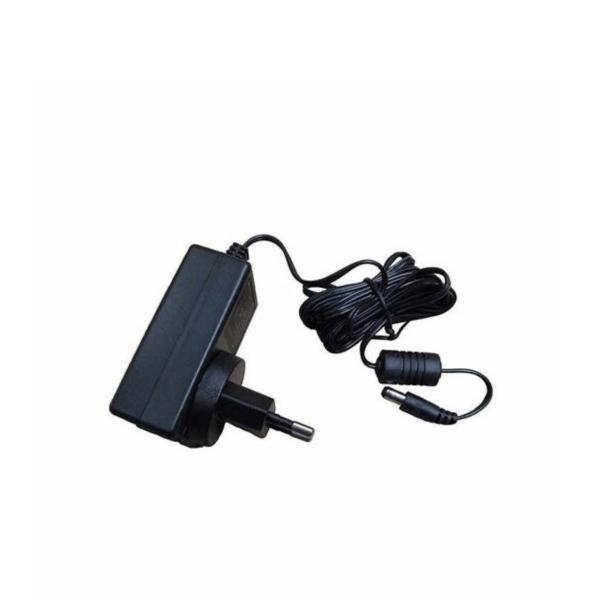

• Power Supply: AC 100–240V, 50/60Hz; DC 5V
• Power Consumption: ≤15W
• Operating Temperature: -25°C to +55°C
• Humidity: ≤85%
• Impedance: 50 Ω
• Connector Type: N-Female
• Automatic Gain Control (AGC): ≥30dB
• Ripple in Band: ≤5dB
• Spurious Emission:
  • 9kHz–150kHz: ≤-36dBm @1kHz
  • 150kHz–30MHz: ≤-36dBm @10kHz
  • 30MHz–1GHz: ≤-36dBm @100kHz
  • 1GHz–12.75GHz: ≤-30dBm @1MHz
• Time Delay: ≤3.0μs
• EVM: ≤3.5%
• Cooling Method: Heatsink convection cooling

• MTBF:

  50,000 hours
