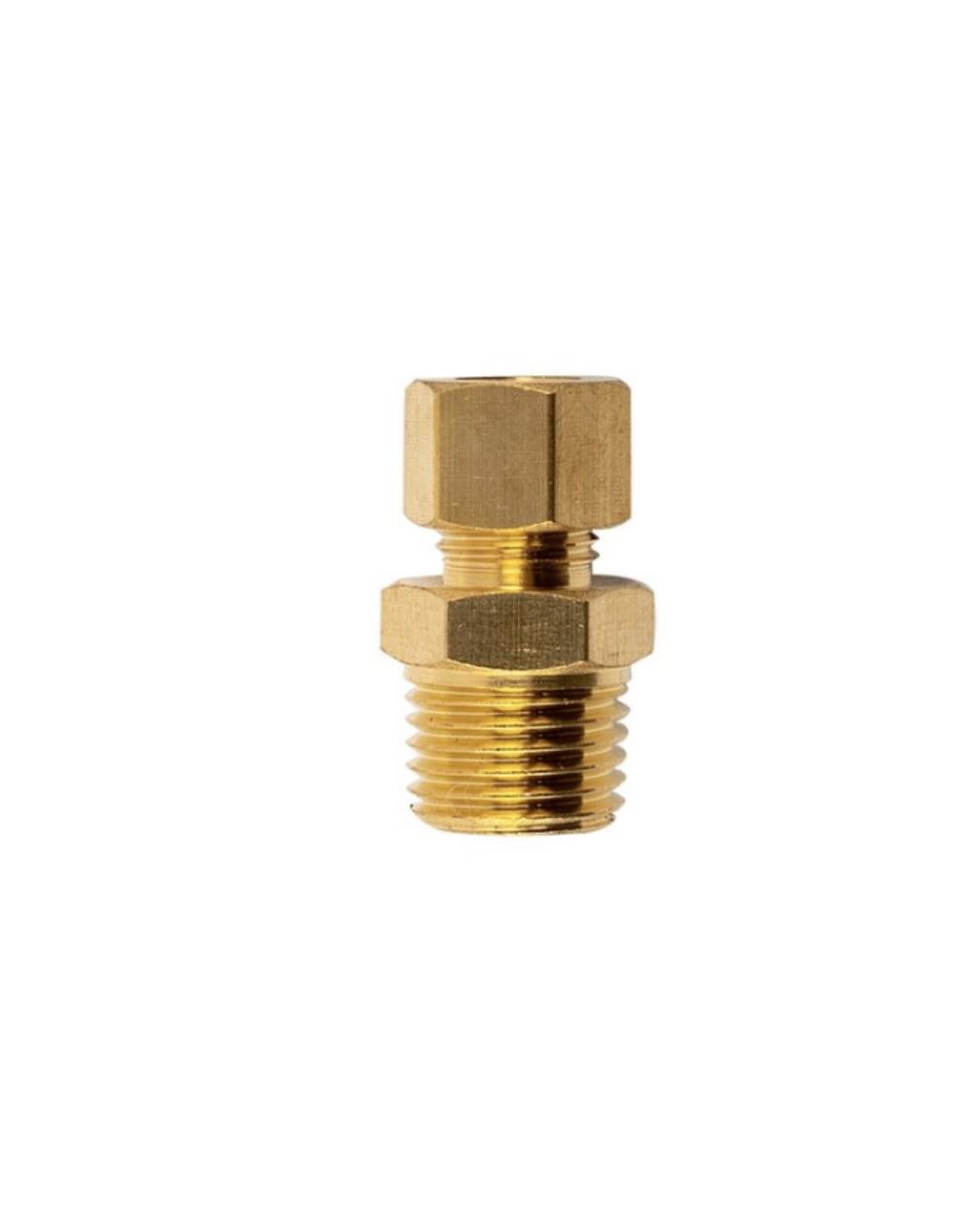

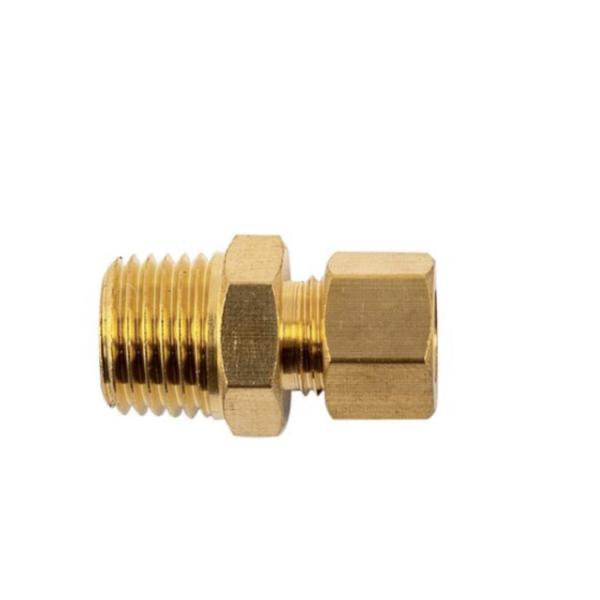

Brass Conical Straight Fitting – 6 mm Hose x 1/4″ Male BSP – Aircraft SB6804B

This brass conical/funnel-shaped straight fitting provides a reliable, corrosion-resistant connection between a 6 mm hose and a 1/4″ BSP (M) threaded port. Crafted from durable brass, it's ideal for pneumatic, hydraulic, and fluid-handling systems. The conical end ensures a tight seal in hose applications, while the BSP male thread guarantees secure, leak-free integration.



General/Technical Specifications

• Brand: Aircraft

• Model / SKU: SB6804B; Barcode: 6009515889760

• Material: Brass (MS) – corrosion-resistant

• Connection:

  • Hose end: 6 mm conical straight fit

  • Threaded end: 1/4″ BSP male

• Applicable Media: Air, water, hydraulic fluid, other non-aggressive media

• Max Working Pressure: up to ~16 bar (typical for brass fittings)

• Thread Type: BSP conical male – fits standard pneumatic/hydraulic ports

• Wrench Size: approx. 14 mm across flats

• Weight: 17–20 g

• Dimensions:

  • Length: 25 mm

  • Width: 11 mm

  • Height: 12 mm
